What’s in the box:

• Power and speaker connectors
• Manual
• Warranty

Description:

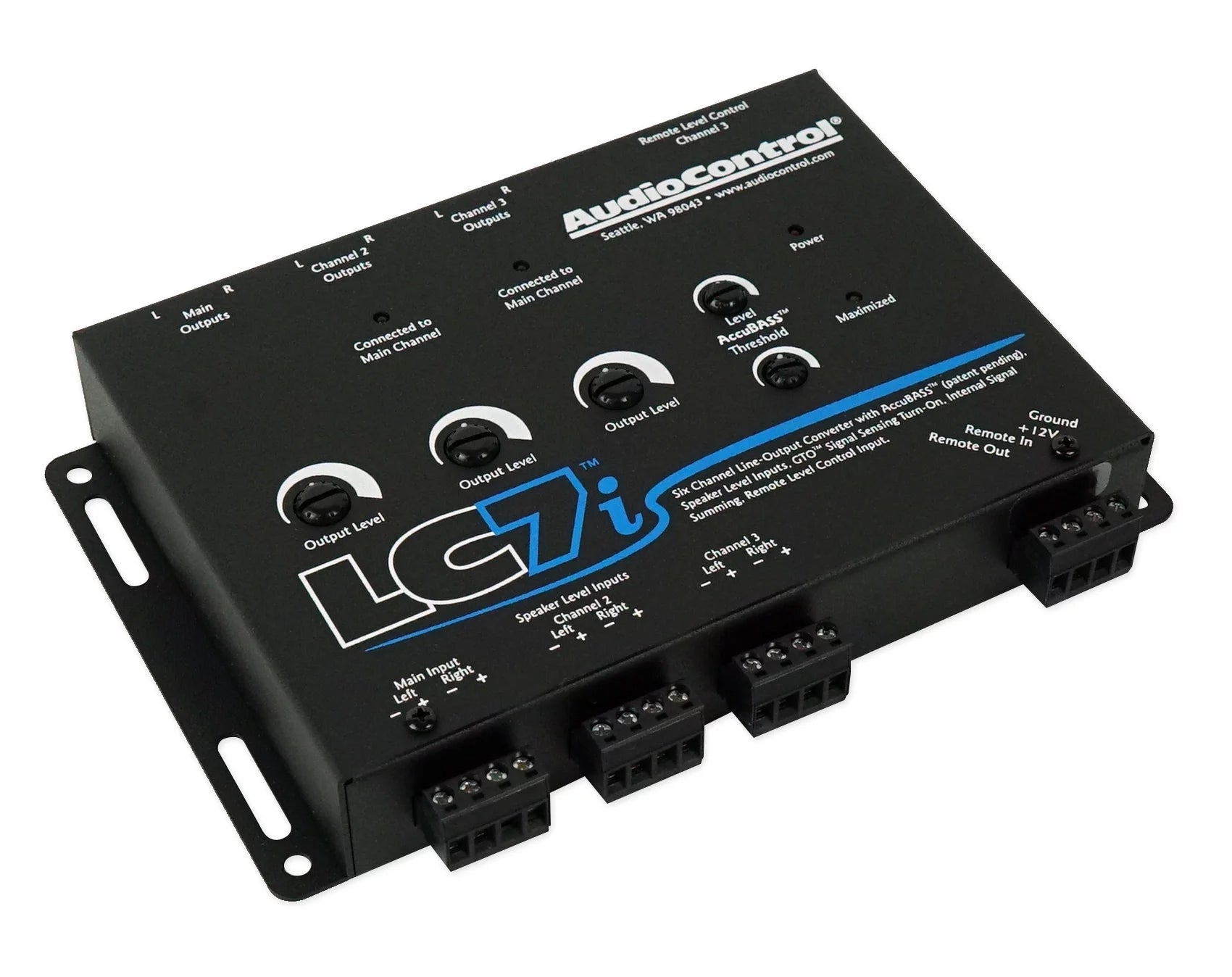

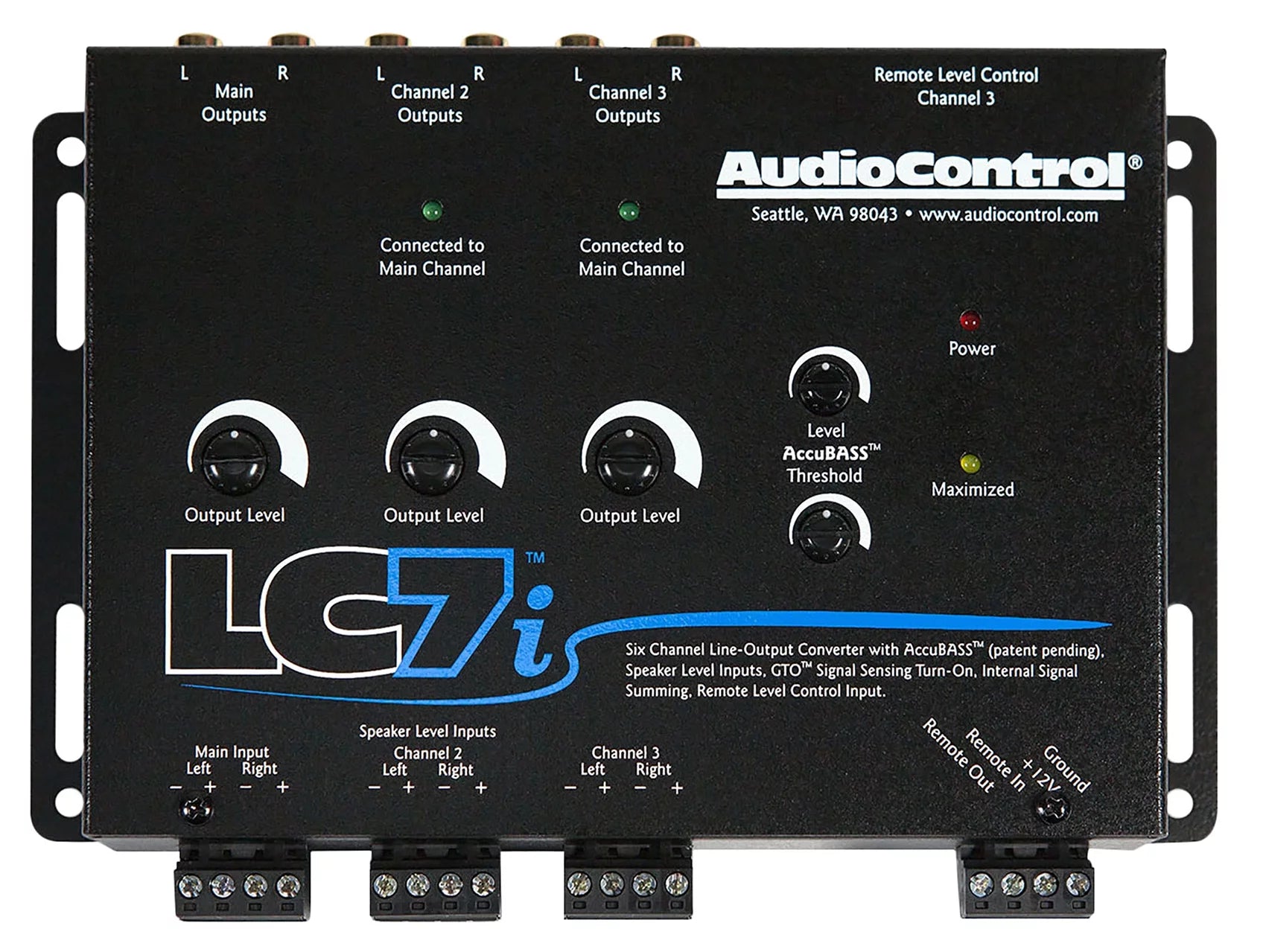

The AudioControl LC7i . six channel active line converter . allows all music lovers . who want a great in-car audio experience . to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems . weak BASS!

Designed for maximum sound quality and enhanced audio performance . the LC7i incorporates AccuBASS. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS circuitry maintains and restores the Bass as the volume is turned up . improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition . the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low frequency output.

Features:

• Six channels of active speaker level inputs ?C accepts up to 400 watts per channel
• Patent Pending AccuBASS circuitry
• Optional ACR-1 Remote allows for user control of the subwoofer level
• Internal Channel Summing ?C For interfacing with factory installed amplifiers with built-in crossovers
• GTO (Great Turn-On) Circuit ?C Powers up the LC7i when it detects signal on the speaker
• level input
• Output level control
• Compact chassis allowing for ease of installation

Specifications:

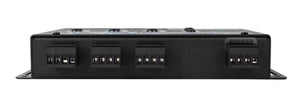

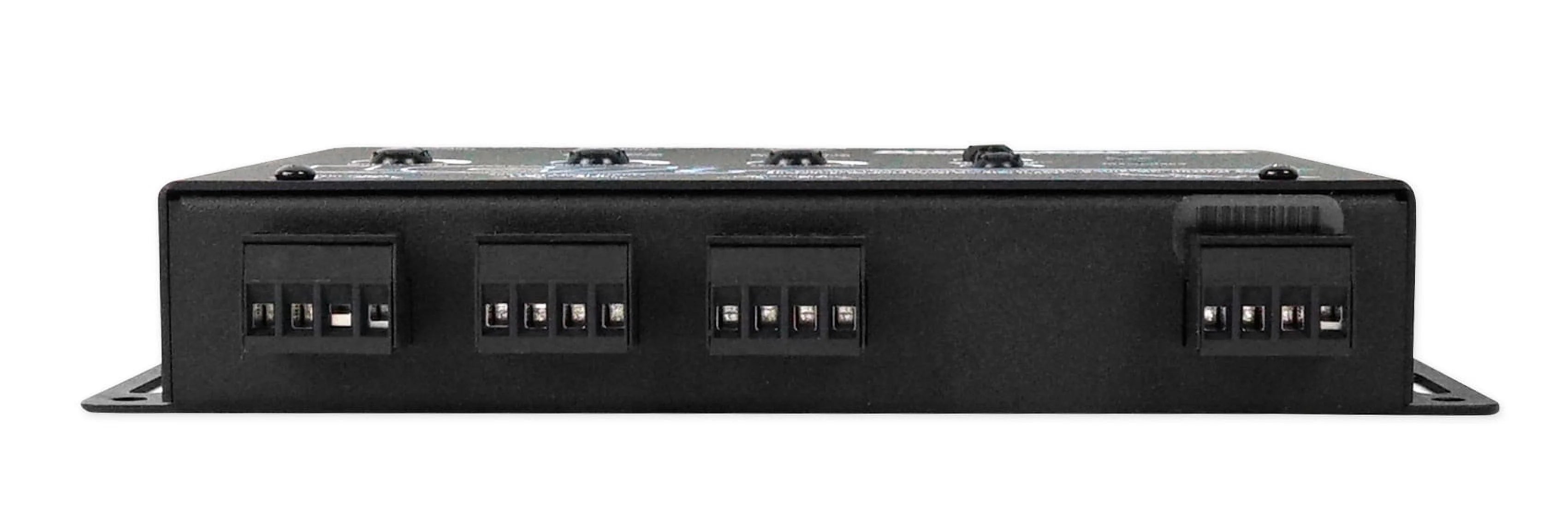

Inputs

• Speaker Level Inputs: 3 (6 channels)
• Maximum Input (speaker level): 400W per channel at 4O
• Input Impedance: 20kO

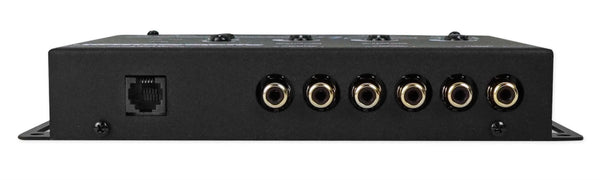

Outputs

• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 8.5Vrms
• Output Gain: ??12dB
• Output Impedance: 150O

Performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 10Hz-22kHz

Control

• Remote In
• 12VDC Remote Out (always active when unit is on)

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 350mA
• Recommended Fuse Rating: 2A

Weights & dimensions

• Dimensions: 7.5??W x 4.7??D x 1.2??H
• Weight: 1.5 lbs (0.7 kg)
